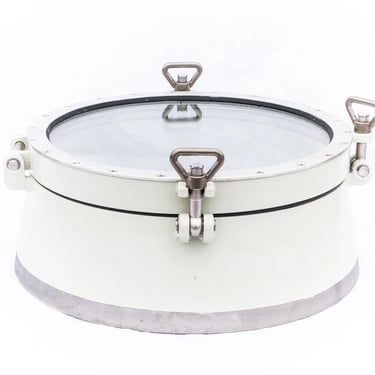

Porthole Steel and stainless 450mm

450mm Steel and Stainless Porthole – Opening – Double Glazing – 165mm Conical Steel Frame – Ready to Weld – 45kg – ISO 1751 – Immediate Availability – IN STOCK

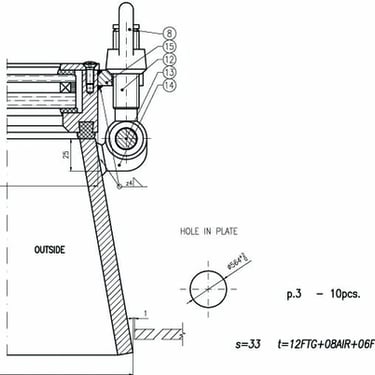

Steel and stainless opening - Steel frame in conical shape to prevent stagnant water to seat against the seals. Also opens the field of vision to the outside - Porthole ready for welding.

Features :

Opening part made of high quality steel
Stainless steel finish
Ready-to-weld conical steel frame for quick, watertight installation
Double glazing with argon for optimal thermal insulation
The porthole meets the requirements of the international standard ISO 1751, the European directive 96/98/EC – Marine equipment and the European river regulations ES-TRIN 2023/1 of CESNI

Dimensions:

Porthole diameter (clear glass): 450mm
Frame depth: 165 mm
Weight: 45kg

Benefits :

The conical frame ensures good visibility by opening the field of vision
No stagnant water against the seal thanks to the conical frame
Ease of Installation: Solder-ready design allows for quick and easy installation.
Double glazing with argon: Provides optimal thermal insulation, reducing heat transfer and minimizing condensation

Use :

This steel and brass ship window is ideal for a variety of applications, including:

Boats, ships & yachts,
Narrow boats, Widebeam & Dutch barges
Industrial installations
Buildings and structures
